Blue Ion 2.0 System Integration

Blue Ion 2.0 System Integration





There are multiple possible electrical integration configurations to install with the Blue Ion 2.0, the configuration used will be determined by the system design.

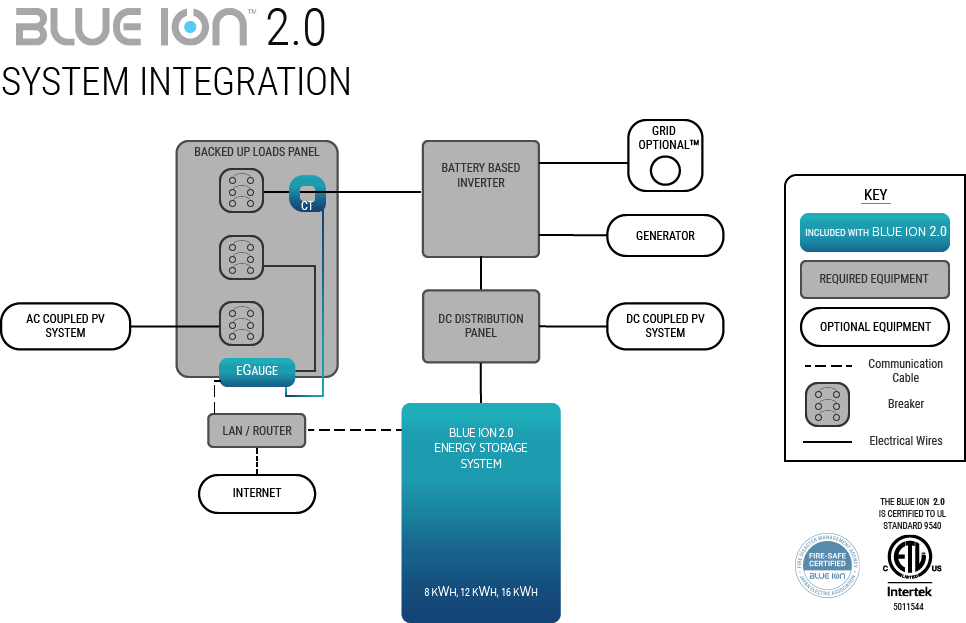

The following schematic describes the equipment included with the Blue Ion 2.0 and the fundamental devices you will need to install and operate the Blue Ion 2.0 properly. Other optional power sources that may be integrated with the system and their possible locations are described as well.

Note: The DC Distribution Panel may be an external DC busbar, the terminals in a charge controller, or some other type of DC power conditioning equipment.
